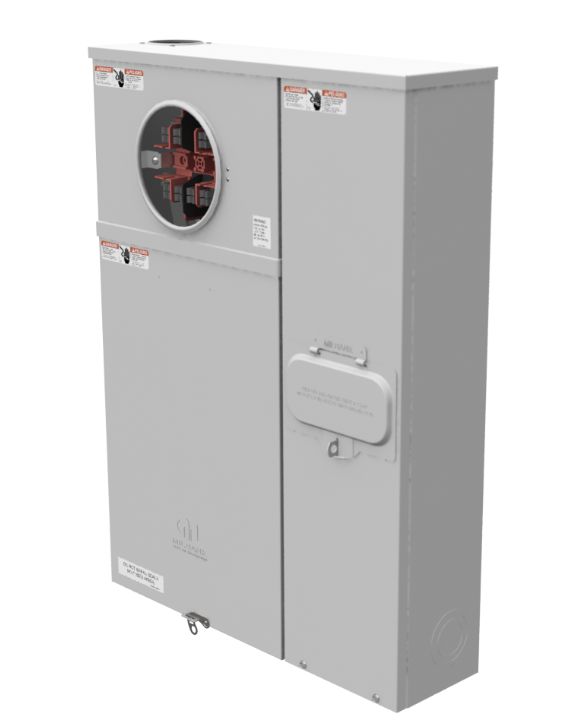

U227MTB
$2 975.00
NEW
Out of stock, available for pre-order
Product Details
Brand: MILBANK
| Brand Name | Milbank |
| Type | Ring Type Meter Socket |
| Special Features | EURSERC Dwg #305A,311 |
| Application | Meter Socket With Main |
| Standard | UL Listed;Type 3R |
| Voltage Rating | 120/208 Volts Alternating Current |
| Amperage Rating | 200 Continuous Ampere |
| Phase | 3 Phase |
| Frequency Rating | 60 Hertz |
| Size | 6L x 22.125W x 30H |
| Number of Main Breakers | 1 |
| Main Breaker Size | One 200 Ampere Main Breaker |
| Cable Entry | Overhead or Underground |
| Terminal | Single Mechanical |
| Insulation | Fiberglass with Resin |
| Mounting | Surface Mount |
| Material | G90 Galvanized Steel with Powder Coat Finish |
| Number of Jaws | 7 Terminal |
| Bypass Provision | Link Bypass |
| Number of Meter Positions | 1 Position |
| Equipment Ground | Ground Lug |
| Hub/Closing Plate | Twin Small Closing Plates |
| Line Side Wire Range | 6 AWG - 250 kcmil |
| Load Side Wire Range | 1 AWG - 300 kcmil |
| Number Of Receptacles | 0 |
| Height | 30 IN |
| Length | 6 IN |
| Width | 22.125 IN |
