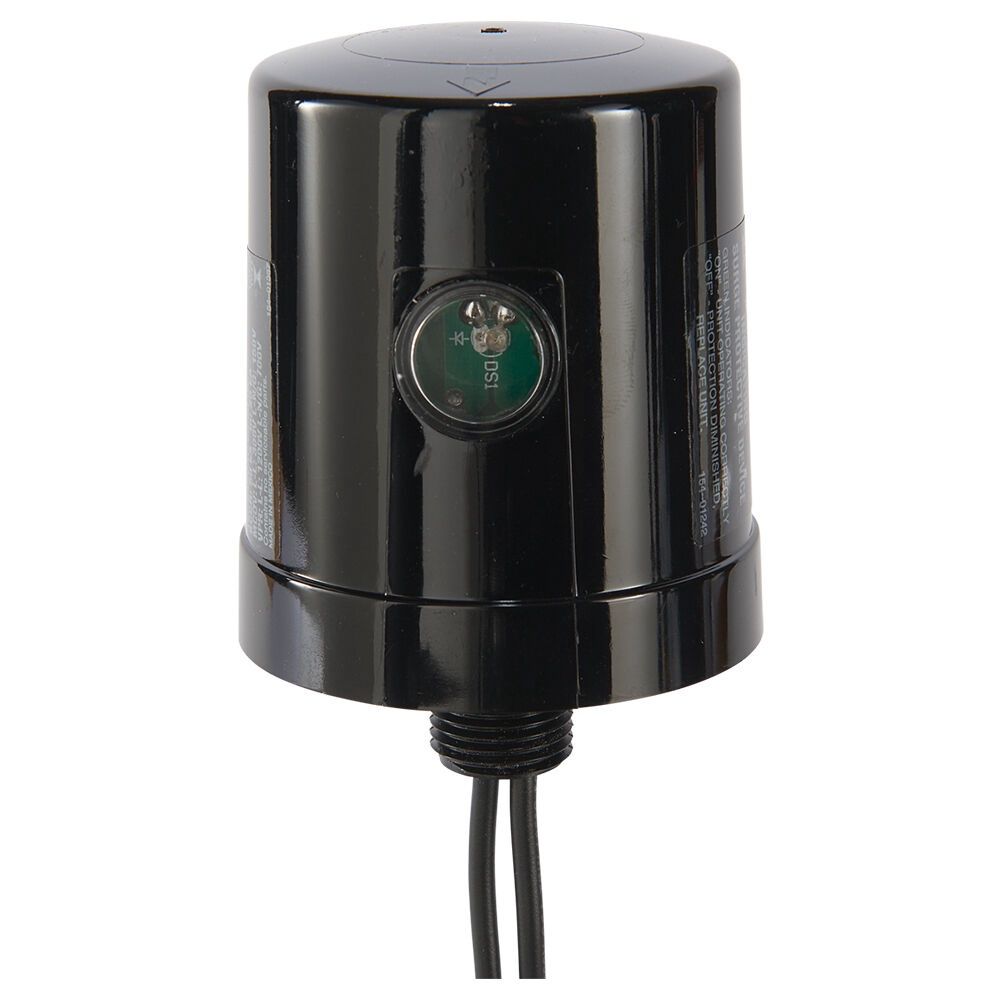

AG2401C3

Surge Protective Device, 3-Mode, 120/240 VAC 1PH, TYPE 1 OR TYPE 2, OUTDOOR.

The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.

• Six modes of protection
• TPMOV® surge protection technology
• Green LED protection indicator
• Type 4X watertight, plastic enclosure for outdoor installations
• UV-resistant polycarbonate housing
• 1⁄2" threaded nipple for 7⁄8" nominal conduit knockout
• 1-year product warranty
• CSA certified to ANSI/UL 1449 5th edition
