Brand Name | Milbank |

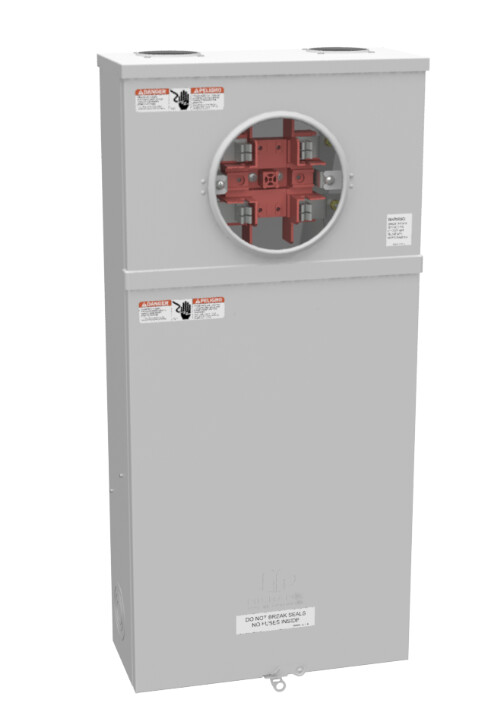

Type | Ring Type Meter Socket |
Special Features | EURSERC Dwg #305,311 |
Application | Meter Socket |
Standard | UL Listed;Type 3R |
Voltage Rating | Up to 600 Volts Alternating Current |
Amperage Rating | 200 Continuous Ampere |
Phase | 1 Phase |
Frequency Rating | 60 Hertz |
Size | 6L x 14.28W x 30H |
Number of Main Breakers | 0 |
Main Breaker Size | No Main Breaker |
Cable Entry | Overhead or Underground |
Terminal | Single Mechanical |
Insulation | Fiberglass with Resin |
Mounting | Surface Mount |
Material | G90 Galvanized Steel with Powder Coat Finish |
Number of Jaws | 4 Terminal |
Bypass Provision | Link Bypass |
Number of Meter Positions | 1 Position |
Equipment Ground | Ground Lug |
Hub/Closing Plate | Twin Small Closing Plates |
Line Side Wire Range | 1/0 - 250 kcmil |
Load Side Wire Range | 1/0 - 250 kcmil |
Number Of Receptacles | 0 |
Height | 30 IN |
Length | 6 IN |
Width | 14.28 IN |
